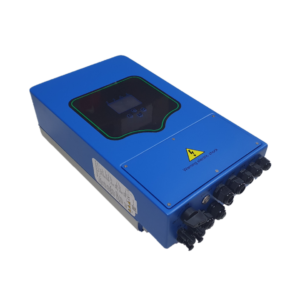

PHOCOS 5KW Hybrid Inverter

TECHNICAL DATA OF THE 5KW HYBRID SOLAR INVERTER CHARGER

Pure Sine Wave Hybrid

Rated Power: 5000 W

System Voltage: 48 VDC

Max. Charge Current: 80 A

Max. PV Panel Voltage: 450 VDC

Battery Type: Lead acid (Gel, AGM, flooded), Lithium, LiFePO4

Up to 9 units in parallel or 3-phase for up to 45 kW of synchronized AC power

Protection level: IP21

Integrated high-voltage MPPT charge controller. The high-voltage PV connection means in most scenarios the PV modules can simply be connected in series, avoiding costly combiner boxes and string fuses or diodes, thus reducing total system cost

Integrated AC battery charger

Charge controller functions even if inverter is turned off to keep batteries fully charged.

Electronic protection, screw terminal PV 16 mm² / AC 10 mm², connection Bat M8 – 50 mm², air cooling, LCD, programmable, USB, RS232, RS485, Bluetooth, Parallel-Kit.
